Bellflo Engineering, End Suction centrifugal
Water pump supplier in Singapore

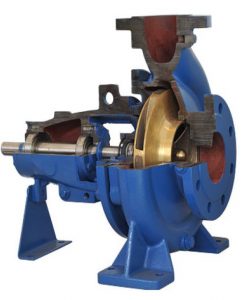

Type : End Suction Centrifugal Water pump, Back Pull-Out (BPO)
Design : EN733/DIN24255
Flange : DIN2332 PN 10RF
Direction of Rotation: Clockwise as viewed from the drive side
Material: : EN733/DIN24256
Casing : DIN2332 PN 10RF
Impeller : Cast Iron, Ductile Iron, Bronze & Stainless Steel
Shaft : SS420 optional AISI304 & AISI316
Shaft Seal : Mechanical Seal and Gland Packing
Operating Range:
Flow Rate(Q) : Up to 1100m3/h
Head(H) : Up to 150m
Speed : 1450-2900 rpm (50Hz); 1750-3600 rpm (60Hz)
Operating Temp : -10 °C to 105 °C standard; Optional 150 °C
Operating Pressure : 10 bar standard; optional 16 Bar
Range of Application:
Pumps can be used for the following services in the Commercial, Residential, Agricultural, Industrial, Process, Petroleum and Food & Beverage industries
- General Water Transfer
- Pressure Boosting
- Air Conditioning
- Cooling Towers
- Refrigeration
- Plumbing
- Circulating
- Transfer
- Irrigation
- Drainage
