Product introduction
We supply Grundfos Equivalent Pumps in Bellflo

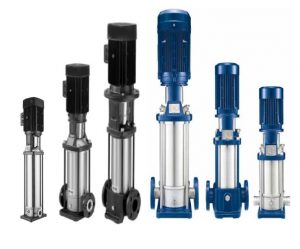

BR pumps are vertical multistage, centrifugal pumps. The in-line design of the pumps enables installation in a horizontal one-pipe system where the inlet and outlet ports are in the same horizontal level and have the same pipe dimensions. BR pumps are available in various sizes and various numbers of stages to deliver the flow and pressure required. BR pumps are fitted with Cartridge type mechanical seal for easy change out without removing motor and adapter or the pipes. pumps are designed for a variety of applications ranging from the pumping of potable water to the pumping of chemicals. BR pump consists of two main components: the motor and the pump unit.
Pumped liquids
BR pumps are suitable for pumping liquids which are thin, clean, non – flammable, noncombustible, or non-explosive liquids not containing solid particles or fibers
Material of Construction of Pumps
BR- Cast iron Pump Base and 304 stainless steel Impeller wetted parts as std. – To use for Non Corrosive liquids
BRI – Pump Base and Impeller 304 stainless steel wetted parts as standard – To use for Non Corrosive liquids
BRN – Pump Base and Impeller 316 stainless steel wetted parts as standard – To use for Industrial Slightly Corrosive liquids
BRT – Titanium Wetted Parts
Operating Range
Technical data
Flow, Q: max. 180 m³/hr
Head, H: max. 330 m
Liquid temp.: -40°C to +180°C
Max. system. pressure: 33 bar.
Applications:
- Water supply Pressure boosting Irrigation
- Filtration and transfer at waterworks
- Process-water systems
- Field irrigation (flooding)
- Distribution from waterworks
- Washing and cleaning systems
- Sprinkler irrigation
- Pressure boosting in mains
- Vehicle-washing tunnels
- Drip-feed irrigation
- Pressure boosting in high-rise buildings, hotels, etc.
- Water treatment Separators
- Pressure boosting for industrial water supply
- Ultra-filtration systems Special transfer duties
- Liquid transfer
- Reverse osmosis systems
- Oils and alcohols
- Cooling and air-conditioning systems
- Acids and alkalis –
- Boiler feed and condensate systems
- Distillation systems Glycol and coolants
- Machine tools (cooling lubricants)
Features - Reliability
- High efficiency
- In-line design
- Extensive range
- Service-friendly
- Space-saving
- Suitable for slightly aggressive liquids
