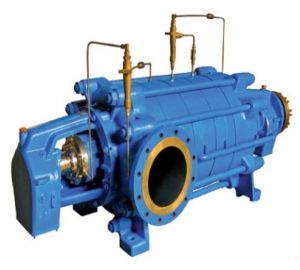

BHR – Horizontal Multistage Centrifugal pump in ring-section design, long-coupled with radial suction nozzle, cast radial impellers. Has multiple impellers or stages of impellers back to back. Horizontal centrifugal multistage pump can be utilized for a wide range of applications in the industrial and marine markets. Pumps are perfect for applications that require higher pressures or a combination of high pressure and low to medium flow rates. This multistage pump is designed to pump low viscosity clean or slightly contaminated fluids without the presence of solid or fibrous particles. Common fluids pumped include fresh water, sea water and fuels (diesel and kerosene) and common applications include boiler feed, chemical, energy plants, mining, fire fighting, reverse osmosis, water treatment, pressurization, dewatering, building systems, marine and cooling/heating conditioning (HVAC), petroleum, irrigation and water supply. There are several options for flange configurations making it versatile when installing on sites with difficult pipework layouts.
Operating Range
Technical data
• Flow, Q: max. 1500 m³/h
• Head, H: max. 1000 m
• Liquid temp.: Up to 150°C
• Discharge Sizes from 3″ to 12″
Material of Construction of Pumps
Flange Connections: ANSI, DIN, JIS
Bronze, Cast Iron, Carbon Steels Super Duplex – 2507, Stainless Steel – 316 – 317 SS Super Austenic – 254 SMO, 654 SMO
Nickel Based Super Alloy Hastelloy
Flange Orientation : Available in Different Suction and Discharge Flange Orientation
Applications: BHR pumps are designed to cover a wide variety of applications such as:
• Water treatment applications
• Oil & Gas Production
• Nano-, Micro- and ultra-filtration systems
• Pressure boosting & transfer
• Onshore – Offshore and Pipeline
• Softening, ionizing, demineralizing systems
• Process-water systems.
• Municipal and Wastewater
• Desalination systems
• Power Plant feed water
• Agriculture and Irrigation
• Distillation systems
• Pulp and Paper
• Boiler Feed Application
• Separators
• Mining Applications
